7.5L-14L Fixed Bed Bioreactor

+
Product Application
● Development of process strategies using batch, flow, continuous, or infusion modes for culturing Vero, ST, and other adherent cells on sheet-like carriers ● Development and production of production processes for vaccines and recombinant proteins
● Process development, optimization, and identification ● Zoom in and out research
● Small scale production, pilot scale production ● Process strategy development using flow, continuous, or infusion modes

  • Product Features
  • Product Parameters
  • Control Accuracy and Range

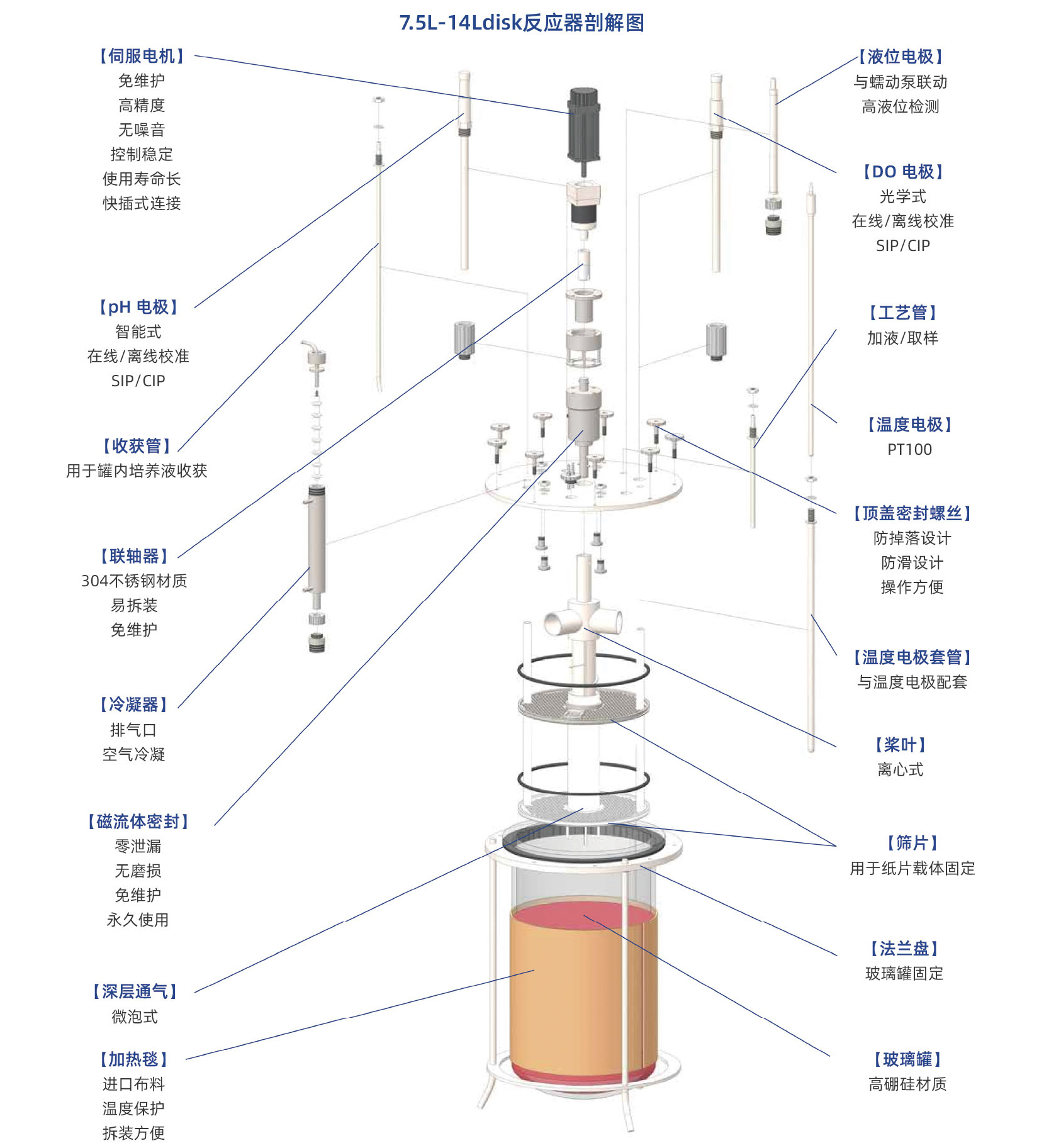

  • Product Disassembly Diagram
  • Case Presentation

  • ● Leak-free, wear-free, maintenance-free magnetic fluid sealing technology

    ● Cloth fiber heating blanket, uniform heating, temperature control accuracy of ±0.1℃, can significantly increase the temperature without overheating

    ● Oxygen and compressed air dual-mode dissolved oxygen control, can be switched automatically

    ● Storage of process parameter preset values, process parameters, fault alarms, login and logout records, operation records, etc., and can be retrieved and analyzed at any time

    ● Internet connectivity enables remote monitoring and control via mobile or computer

    ● One-to-two, one-to-four, one-to-eight and other integrated control systems

    ● Pre-set automatic restart function; When power is restored after an outage, the equipment will automatically resume the pre-failure control state

    ● Supports timed startup, shutdown, and automatic adjustment of control data

    ● Equipped with curve recording functionality

    ● Simple, quick, and safe pipeline operations

    ● Standard modular design with components and PLC software library

    ● Validated aseptic design and stability ensure process reliability

    ● Proven hardware design and control software

    ● Complies with cGMP and FDA requirements

  • ● Working volume: 5L-10L (total volume 7.5L-14L) ● Tank material: single-layer high borosilicate glass
    ● Sterilization method: High pressure sterilization pot offline sterilization ● Temperature control: Heating blanket heating
    ● Mixing method: Top mechanical mixing (magnetic fluid sealing technology) ● Air intake method: Four way intake of oxygen, carbon dioxide, compressed air, and nitrogen
    ● Intelligent pH electrode, optical DO electrode ● Peristaltic pumps: Three sets of peristaltic pumps, adjustable from 0-100rpm, disposable
    ● Control cabinet: Plastic control cabinet, beautiful and lightweight ● Current and voltage: 220V, 50/60Hz, single-phase 5A, potential balance
    ● Process gas, 0.05MPa ≤ 0.15MPa, dry, oil-free, dust-free, with a diameter of 6 air pipe socket
  • ● Temperature control range: 20-40 ℃, control accuracy ± 0.1 ℃ ● PH control range: 2-12, control accuracy ± 0.02
    ● DO control range: 0-100% air saturation, control accuracy ± 5% ● Speed control range: 0-200rpm, control accuracy ± 0.1rpm

  • 7.5L-14L固定床生物反应器-1.jpg
